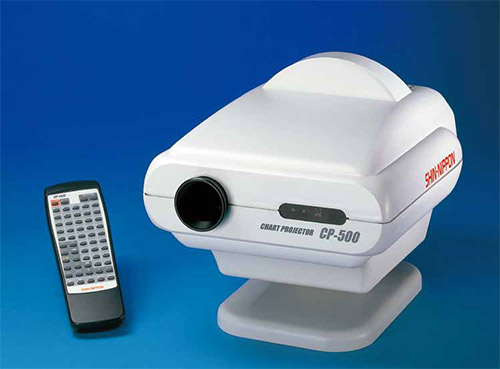

CP-500
The chart projector featuring 50 types of charts that can perform the inspection in a wide field from child to adult.
- Lamp switch
- No use
- Program switch (1,2)
- Chart/Mask switch
- Horizontal line switch
- Vertical line switch
- One chart switch
- Back switch
- Next switch

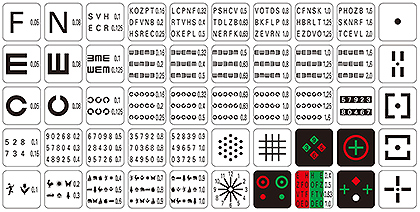

50 charts and various masks
Landolt, Letter, Child, Snellen, 50 kinds of charts, and Horizontal line, Vertical line, one chart, various masks can be selected by the remote control box.
50 charts and various masks
Landolt, Letter, Child, Snellen, 50 kinds of charts, and Horizontal line, Vertical line, one chart, various masks can be selected by the remote control box.
Fast, slient chart disk rotation
It moves to the following chart in a maximum of 0.3 seconds.
User Program mode
2 kinds of programs can be selected. 48 kinds (maximum) of chart and mask are memorizable.
Room light switch
By using optional deviator, operation of a room light is available by the remote control.
Adjustment of the brightness
The brightness of the projector can be changeable by the control switch according to the brightness of the operation room.
Specifications
| Number of chrats and masks | 50charts and 38masks |
|---|---|
| Luminance | min.80-max.320Cd/m2(200Cd/m2 at 5m) |
| Chart and mask selection speed | 0.3seconds |
| Program | 2 kinds(48charts or masks) |
| Tilting angle | ±10° |
| Auto power off | After 5 min. |
| Lamp | White LED |
| Projection distance | 2～7m |
| Projection magnification | 30 x (at 5m) |
| Projection size | 335mm x 222mm (at 5m) |
| Dimentions | W248xL336xH234mm |
| Weight | 4.5kg |
| Power source | 100～240V |
| Power consumption | 30VA |
| STANDARD ACCESSORIES | REMOTE CONTROL BOX, SUM4 BATTERY X 2, SCREEN, TEST SCALE SHEET, DUST COVER, SPARE FUSE |
| OPTIONAL ACCESSORIES | TABLE BASE STAND, WALL MOUNT, CHART PROJECTOR ARM, POLA FILTER GLASS, R&G GLASS, DEVIATOR |
