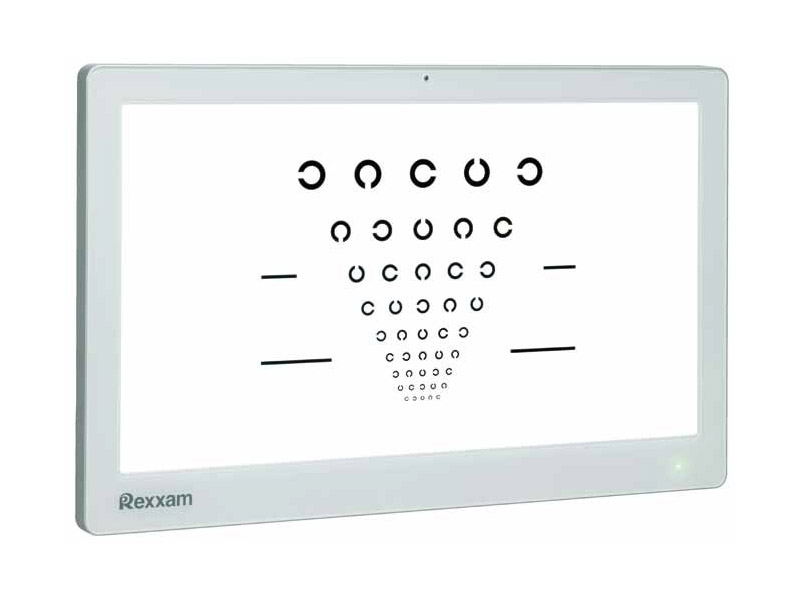

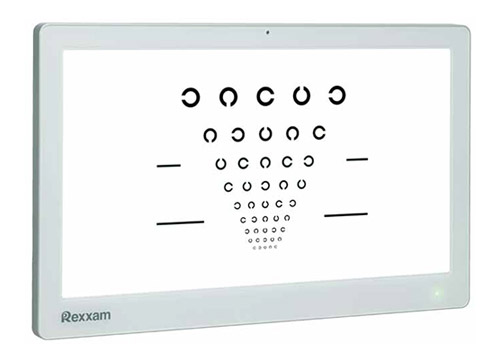

LCD-1000P
Smart, Slim & Easy to use.
Synchronize with Digital Refractor DR-900.

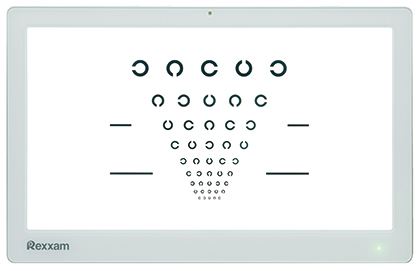

Display
24 inch high resolution Display Panel with circular polarization
Chart Types
Various types of standard charts, polarized charts for Binocular test, ETDRS chart, Contrast test, 3D test, Color Vision test, Maddox test(LED), etc.

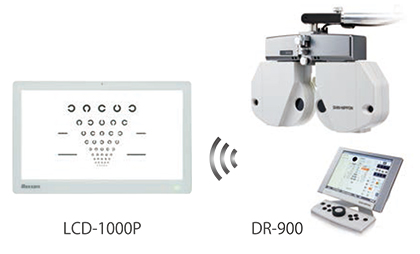

Synchronize
Synchronize with Digital Refractor DR-900.

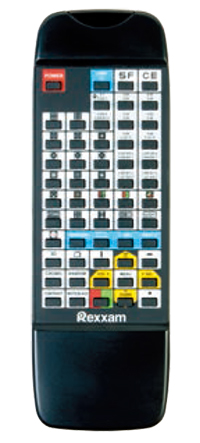

Remote Control
4 kinds of channels for the remote control are availble.
Specifications
| Monitor | Type | 24 Inch TFT LED Backlight |
|---|---|---|
| Resolution | 1920(H) x 1080(V) Pixels | |
| Functions | Chart | 1.Landolt 2.Tumbling E 3.Numbers 4.Letters 5.Child 6.Special |
| Masking | Single / Horizontal Line / Vertical Line | |
| Filter | Red and Green / Circular Polarized Filter | |
| Special function | Mirror mode / Contrast / White and Black reverse / Random /Crowd |
|
| Working Distance | 1.0m~8.0m (Step 0.25m) * | |
| Control device | Wireless IR remote controller / Digital refractor DR-900 | |
| Screen saver function | Screen off / Chart show (OFF, 5sec, 10sec, 30sec) | |
| Screen saver waiting time | 5min / 10min / 30min | |
| Specifications | Body | 573(W) x 363(V) x 46(D) mm / 4.3 kg |
| Remote control | 64(W) x 195(V) x 20(D) mm / 140 g | |
| Power supply (Main unit) | DC 12V 3.4A | |
| Power | 100~240V | |
| Power consumption | 70VA | |
| Standard Accessory | Mount | 1 pcs |
| Glasses | Pola / Red and Green | |
| Remote control | 1 pc | |
| Battery | 2 pcs (AA 1.5V) | |
| Adaptor | 1 pc | |
| Power Cable | 1 pc |
