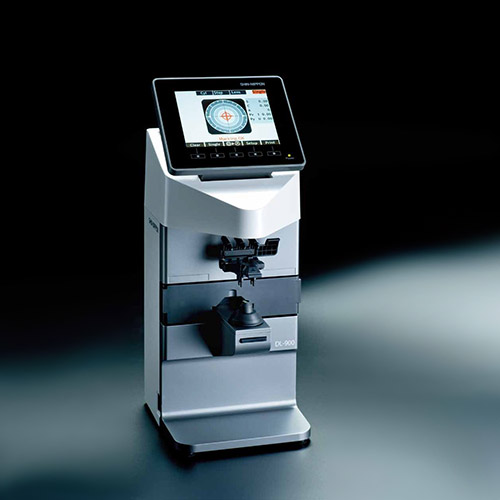

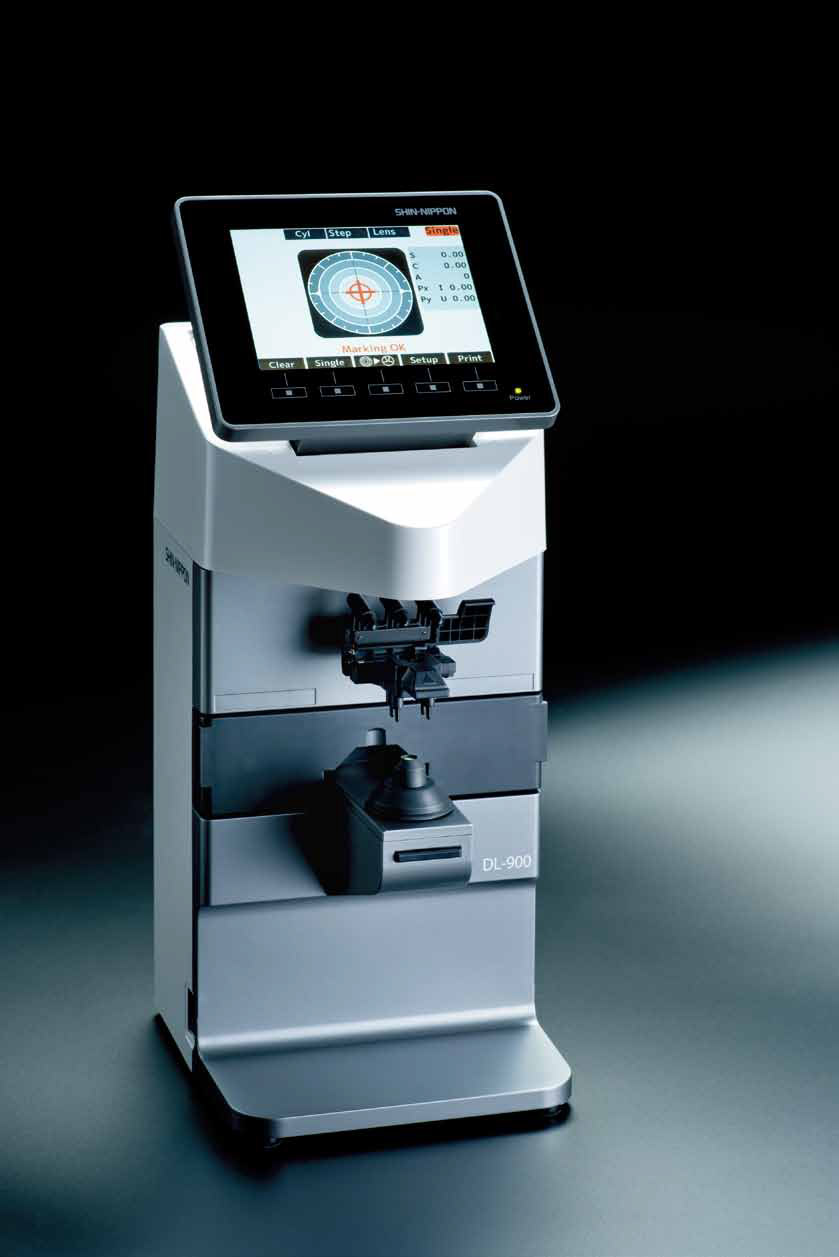

DL-800 / DL-900 / DL-1000

Beautiful, cool design, user-friendly and accuracy have been achieved with highest level of perfection.

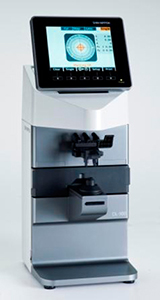

New Generation DESIGN & STYLE

Exquisite detail and quality. Sophisticated shape combined with soft curves and attractive color with high quality Perfect to store spare roll paper, marking pen two-tone metallic and pearlescent paintwork which complements any interior and appeals atmosphere of trust to the customer.

Compact & Stylish design

Place and fit by a wall tightly and neatly.(20% thinner compare to previous model)

GREEN LED light

Green LED light gives more precise measurement values without Abbe value adjustment.

(Previous model had RED LED light)

Convenient Accessory Box

Perfect to store spare roll paper, marking pen and contact lens stand.

New designed lens holder & marking pens

In the pursuit of ergonomics, lens holder and marking pens are integrated. Operability improved by shortening the stroke of marking pens, and high precious marking is enabled.

User interface with beautiful and excellent visibility

When alignment is correct, the color of target changes. When the measurement is finished, the color of the datawindow changes. The operation state of equipment can be judged visually.

Easy and intuitional progressive mode

Movements of lens are perfectly linked to the movement of screen. Any one can measure the progressive lens easily and intuitionally.

Feather-touch sensor button

The feather-touch sensor button used to interface with screen enables sensitive and accurate operation.

Wide visual field angle and tilt screen

Wide visual field angle and 60° tilt screen. The unit can comfortably be operated from both seated and standing positions.

"Dual Nose Pad" PD measurement

With our unique "Duel Nose Pad" the PD measurement is much quicker and easier.Higher work efficiency on left and right lens measurement.

Hi-Speed UV measurement

Measurement of lens power and UV are performed simultaneously.

The results are displayed right away.

Models DL-800 DL-900 DL-1000
UV Transmittance Measurement included
Pupillary Distance Measurement included
Printer included included
Specifications
Digital Lensmeter DL-800

Also introducing our new sister model DL-800!

DL-800 is reasonable model with same specifications as DL-900 excepting printer.

Digital Lensmeter DL-900 Specifications
Measurement Range Sphere -25D~+25D (0.01/0.12/0.25 step)
Cylinder 0~±10D (0.01/0.12/0.25 step)
Axis 0~180° (1°)
Addition 0~+10D (0.01/0.12/0.25 step)
Prism 0~10△ (0.01/0.12/0.25 step)
Diameter of lens φ20~100mm (in case of contact lens, more than φ5mm)
Measurable Lens Unprocessed lens (diameter:100mm) Framed processed lens:Single lens, multifocal lens, progressive lens
Hard contact lens、Soft contact lens}Accompanying lens stand is necessary
Measurement 525nm
Power Rating 100~240V 50/60Hz
Power Consumption 40VA
Printer Thermal printer (paper width 58mm)
External Communication Port RS・232C
Monitor Color LCD monitor (5.7 inches)
Size.weight 170mm(W)×205mm(D)×468mm(H) (400mm: when the monitor is stored)
Approx. 4.3kg
Environmental Condition of Use Temperature range:10°~40°
Humidity range :30~90% HR(No dew condensation allowed)
Standard Accessories Operation Manual/Power code/Printer paper/Dust cover/Contact lens holder
Digital Lensmeter DL-1000 Specifications
Measurement Range Sphere -25D~+25D (0.01/0.12/0.25 step)
Cylinder 0~±10D (0.01/0.12/0.25 step)
Axis 0~180°(1°)
Addition 0~+10D (0.01/0.12/0.25 step)
Prism 0~10△ (0.01/0.12/0.25 step)
Diameter of lens φ20~100mm (in case of contact lens, more than φ5mm)
Measurable Lens Unprocessed lens: (diameter:100mm) Framed processed lens: Single lens, multifocal lens, progressive lens
Hard contact lens、Soft contact lens}Accompanying lens stand is necessary
UV Transmittance Measurement 0 to 100%
Measurement step: 5%
Pupillary Distance Measurement 45 to 85mm
Measurement step: 0.5mm
Measurement 525nm
Power Rating 100~240V 50/60Hz
Power Consumption 40VA
Printer Thermal printer (paper width 58mm)
External Communication Port RS・232C
Monitor Color LCD monitor (5.7 inches)
Size.weight 170mm(W)×205mm(D)×468mm(H)(400mm: when the monitor is stored)
Approx. 4.3kg
Environmental Condition of Use Temperature range: 10°~40°
Humidity range: 30~90% HR(No dew condensation allowed)
Standard Accessories Operation Manual/Power code/Printer paper/Dust cover/Contact lens holder
