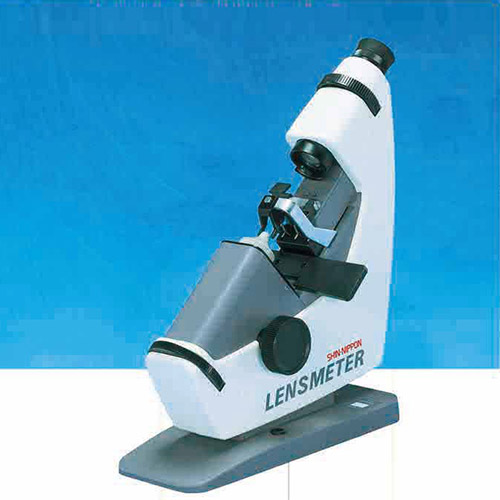

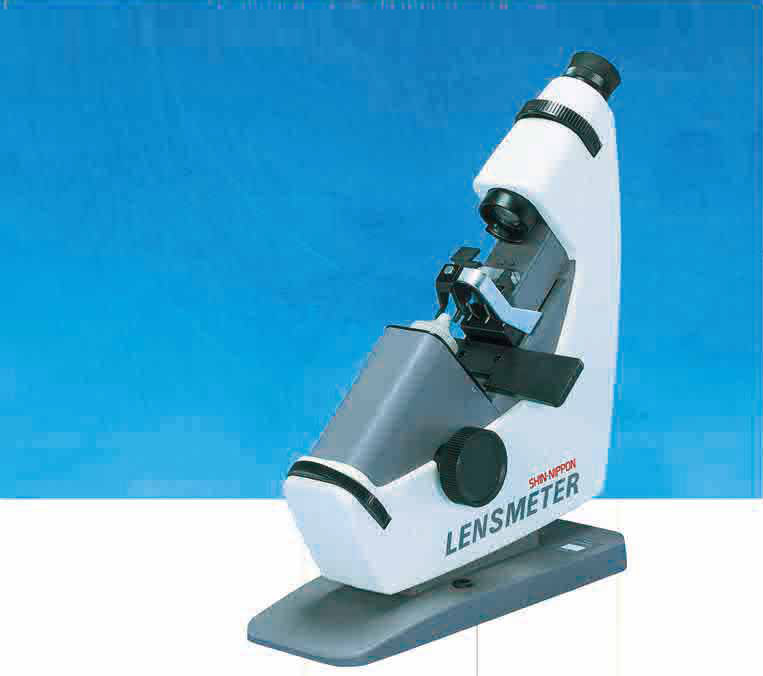

101 Optical - LM-15

Lightweight, cordless models can be carried any place.

No cord to obstruct handling the lens meter Also, now you can use our LM-15 with an AC adapter!

Features

New refined appearance with convenience-oriented design ensures operational ease.
Troublesome lamp replacement is eliminated by an LED light source.
The auto power-off function maximizes battery life even when the OFF-switch is forgotten. The batteries run for more than 200 hours continuously, and the power-off time is adjustable (2-6 min.).
Can be clamped at any angle within from 45°~90°allowing measurement while in a comfortable position.
Can be tilted to a full 90° for easy measurement of contact lenses.
When an AC adapter is connected, the battery supply circuit is automatically closed to save battery life.

Diagnostic Auto-Refactor Auto-Ref-Topographer Non-Contact Tonometer Slit Lamp Specular Microscope Phoropter Charts Lens Meter PD Meter Digital Camera System Operation Microscope Retinal Camera OCT Refraction Unit MDT

LM-15
(Internal reading type)

LM-15A
(Internal reading type)

LM-15B
(External reading type)

LM-15C
(External reading type)

LM-15D
(External reading type)

Model: RG-100

AC adapter (Specifications)
Out put : DC 3V 500mA
Out put plug size
Outside diameter : 5.5mm
Inside diameter : 2.5mm
Length : 9.5mm
Polarity : see below

Specifications

Model		LM-15	LM-15A	LM-15B	LM-15C	LM-15D
Vertex refracting power	Measurement range	0~±25D
Vertex refracting power	Graduation	Within ±3D : 0.125D step Over ±3D : 0.25D step
Prism refracting power	Measurement range	0~5△D
	Graduation	1△D step
	With prism compensator	Max. 20 △D
Axis angle	Measurement range	0~180°
	Graduation(Internal)	1°	1°	1°	-	1°
	Graduation(External)	5°	-	5°	2°	5°
Inspection lens diameter	Measurement range	24~90 mm φ(Contact lens possible)
Tilting		45~90°
Power supply		SUM3 battery×2 or AC adapter (option)
Light source		LED
Dimensions		355(H)×340(D)×170(W)
Weight		3.6kg	3.4kg	3.6kg	3.2kg	3.6kg
Standard accessories		2 Alkaline battery (SUM3) 1 Dust cover 1 Standard lens holder 1 Contact lens holder 1 Bifocal lens holder
Optional accessories		Prism compensator Diopter range : 15 diopters Graducations : 1 diopter step Angle scale : 0~180° Graduations : 5° AC adapter (see specifications)
