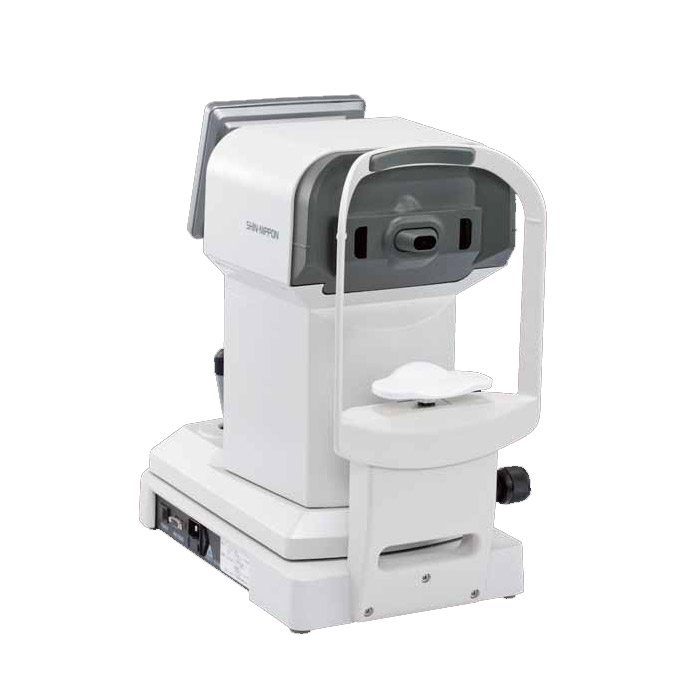

NCT-200
New Generation DESIGN & STYLE
Exquisite detail and quality.Sophisticated shape combined with soft curves and the attractive color with high quality two-tone metallic and pearlescent paintwork which complements any interior and appeals atmosphere of trust to the customer.
Newly-developed smart puffing control system (S.P.C)
The S.P.C system, which includes our newly developed algorithm measurement engine, makes it possible to adjust air pressure instantly and precisely to match the patient's intraocular pressure. It also keeps noise to a minimum and ensures soft air pressure.
Newly designed smart alignment & auto shot function
Smooth and accurate alignment function. Once aligned, air pulse and measurement commence automatically.
By keeping measurement time to a minimum, patient stress is reduced.
Reliability Warning Display
The warning mechanism displays an asterisk on the screen when measurement reliability is low.

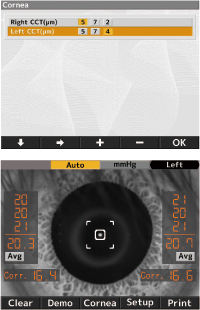

Convenient IOP correction function
The IOP value is corrected automatically by simply inputting the central corneal thickness.
This can be done easily before or after measurement.
Three functions for superior safety
When the nozzle is too close to the patient's eye, an alarm is triggered and the words “Too Close” appear on the monitor.
In addition, the safety stopper function prevents contact with the patient's eye.
Feather touch sensor button
The feather touch sensor button, designed for compatibility and interface with the screen, make our non-contact tonometer easy and reliable to operate.
Improved forehead and chin rests
Side flaps mounted to each side of the measurement window enabling to block out the light realizes high accuracy. The modified shapes of the forehead rest and the chin rest help to minimize stress of the patient.
New Joystick
The completely redesigned joystick with the shape and top button allows the operator to control the unit with more precise and instinctive movement.
Unique LCD Monitor
A swivel function to the left (30°) and a vertical tilt function (40°) have been added to the monitor unit. This swivel function allows measurement while supporting the patient.
Specifications
| Intraocular pressure (IOP) measurement range | 1mm Hg ~ 60mm Hg / 0.1kPa ~ 8.0kPa |
|---|---|
| Measurement resolution | 1mm Hg / 0.1kPa |
| Working distance | 11mm |
| Target | Fixation light: green (blinking/non-blinking options) |
| Measurement start procedure | Manual, automatic |
| IOP correction function | With a corneal thickness input function |
| Built-in monitor body | 5.7 inch color LCD monitor |
| Printer | thermal line printer (paper width 58mm) |
| Power voltage/frequency | AC100V-240V, 50/60Hz |
| Power consumption | 60VA |
| Power saving function | OFF, 3, 5, 10min. (selectable) |
| Data Output | RS-232C interface |
|---|---|
| Size | (W) 240mm / (D) 422mm / (H) 430mm |
| Movement range of the measurement unit | Forward/backward ±22mm Horizontal direction ±43mm Vertical direction ±17mm |
| Movement range of the chin rest | vertical ±30mm |
| Movement range of LCD | +30° swivel (left only), +40° tilt |
| Weight | approx. 13kg |
| Standard Accessories | Operation Manual, Power cord, Printer paper, Fuse, Dust cover, Measuring nozzle cap, Paper covers for chin rest, Chin rest cover pin, Cotton swab |
