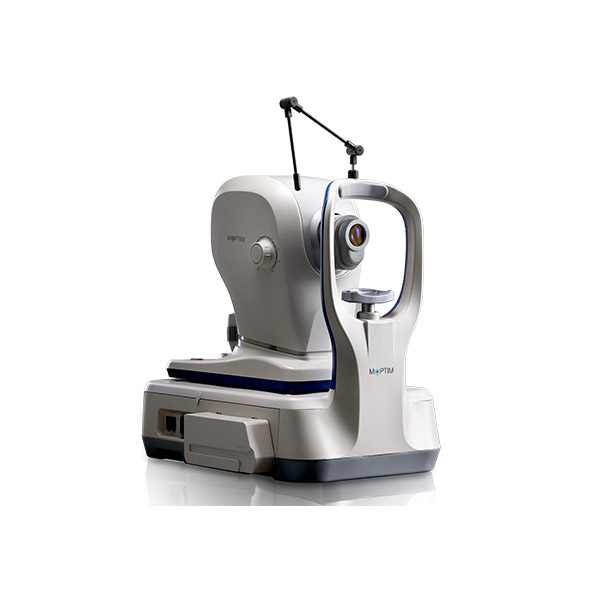

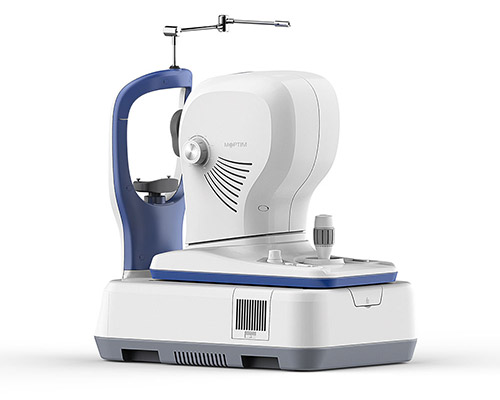

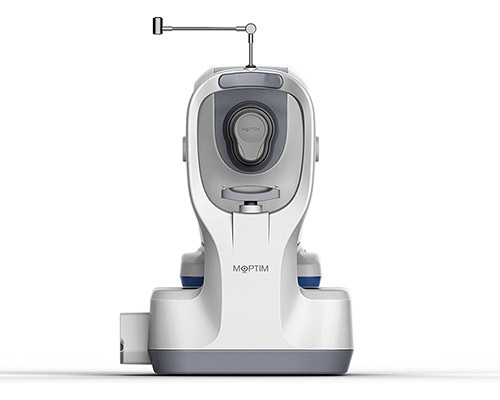

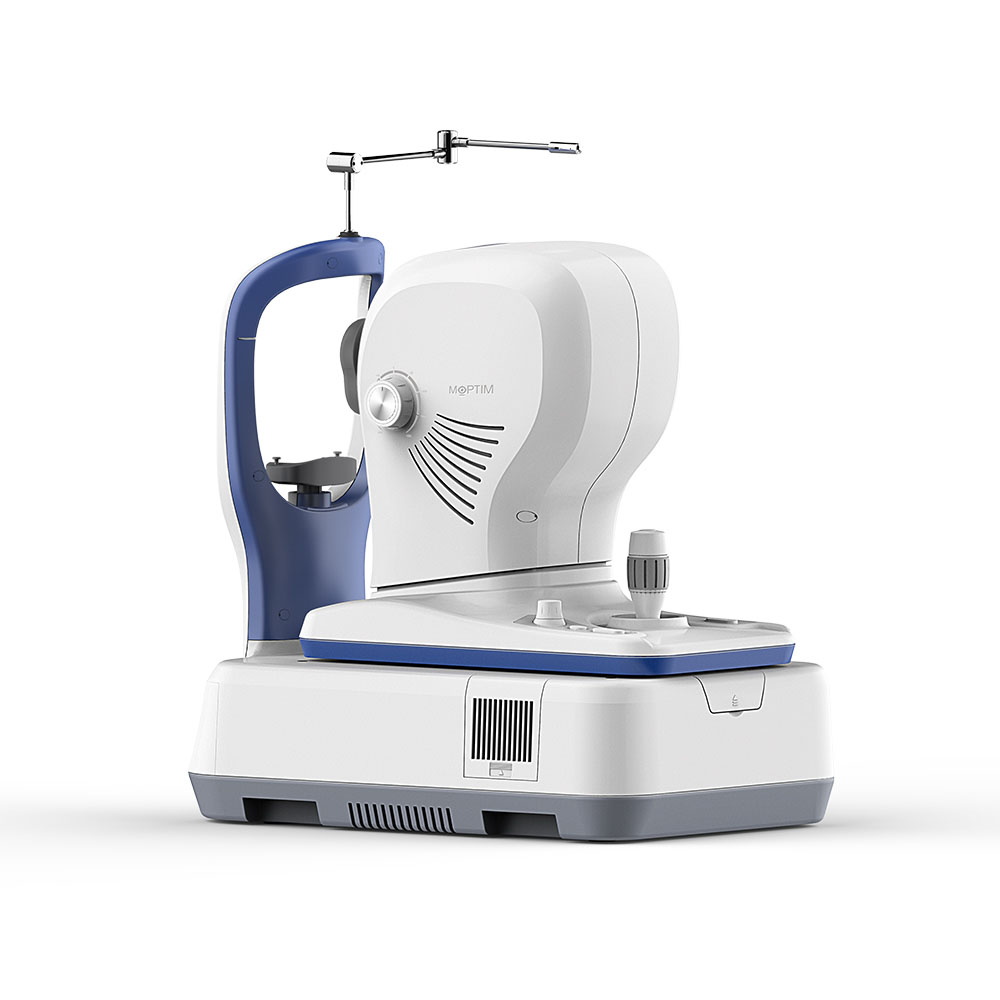

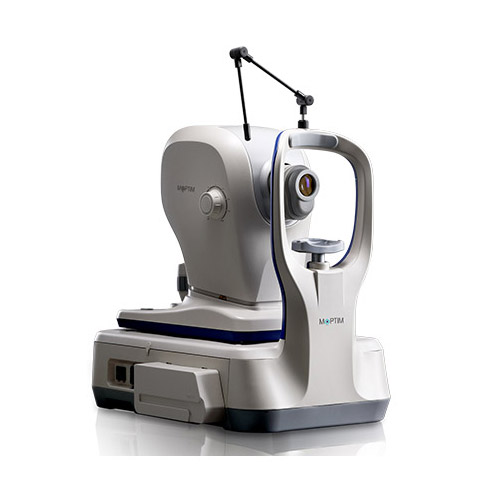

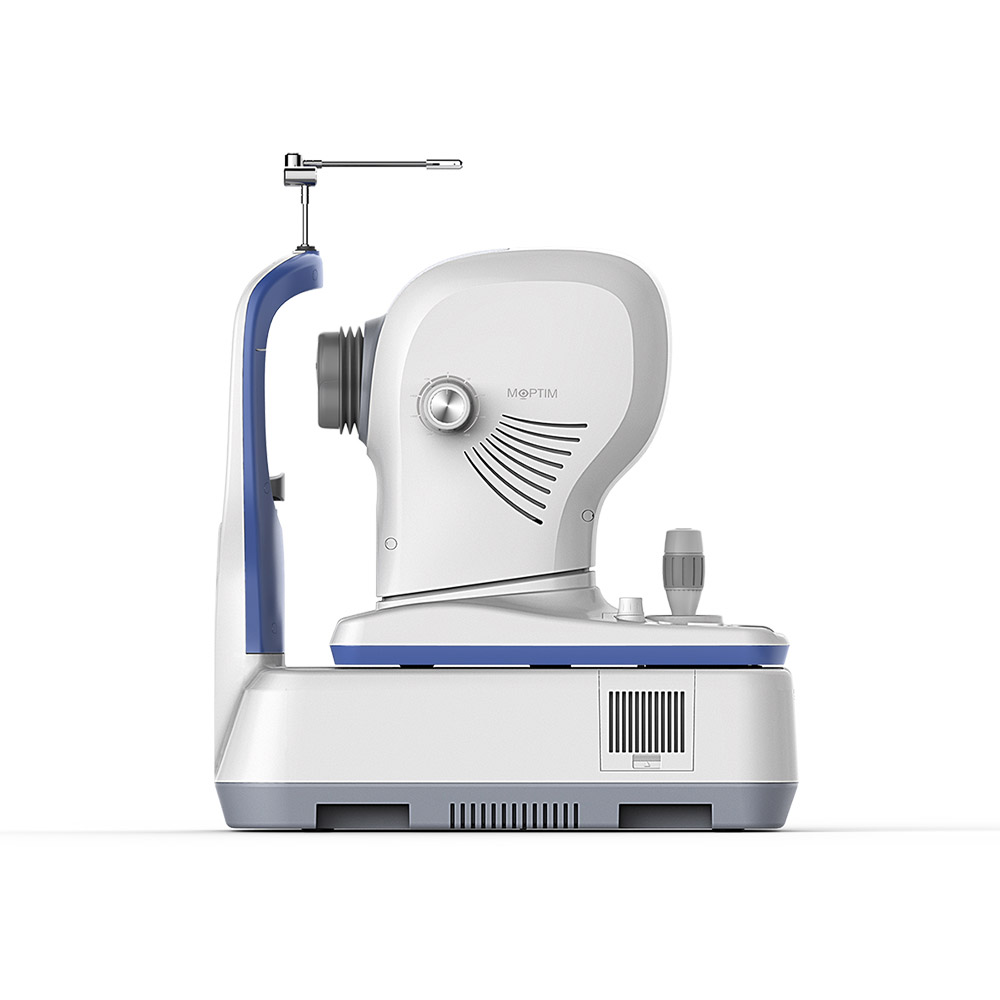

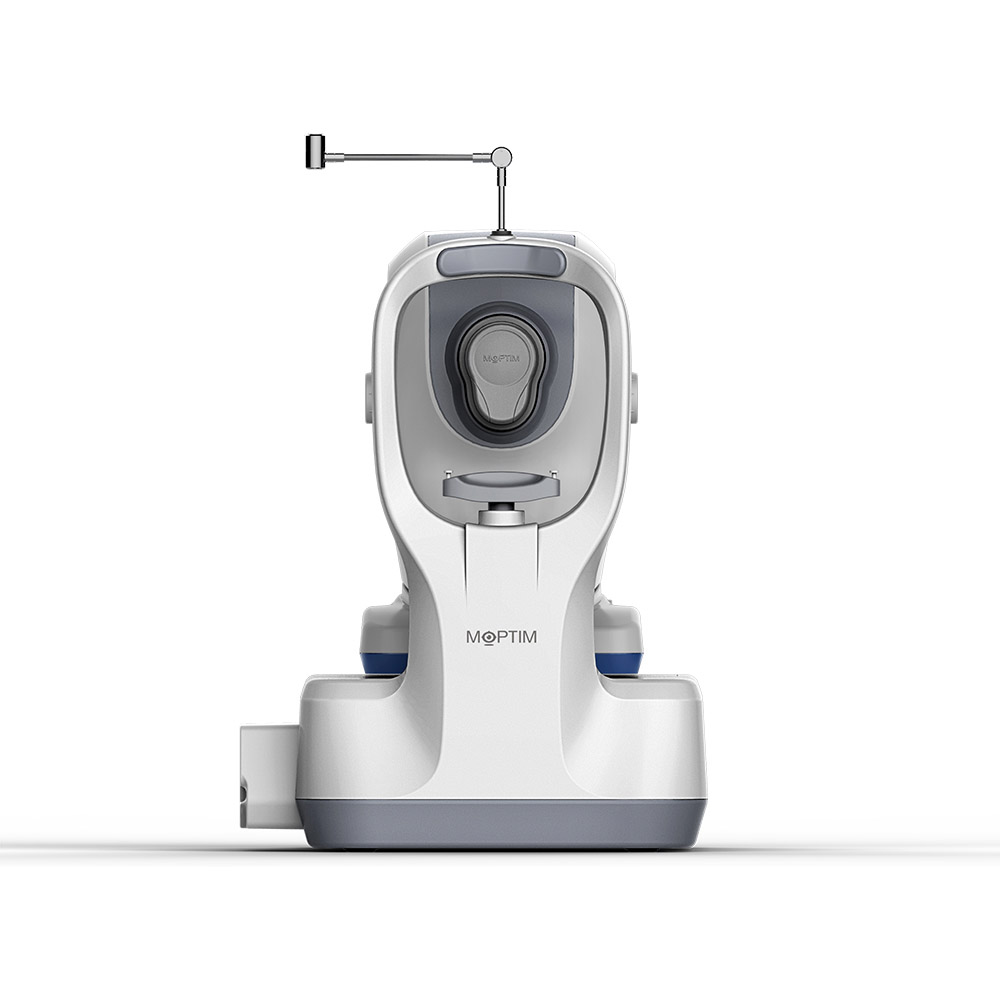

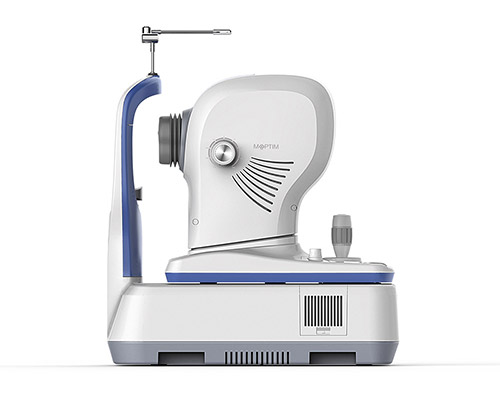

Mocean 4000

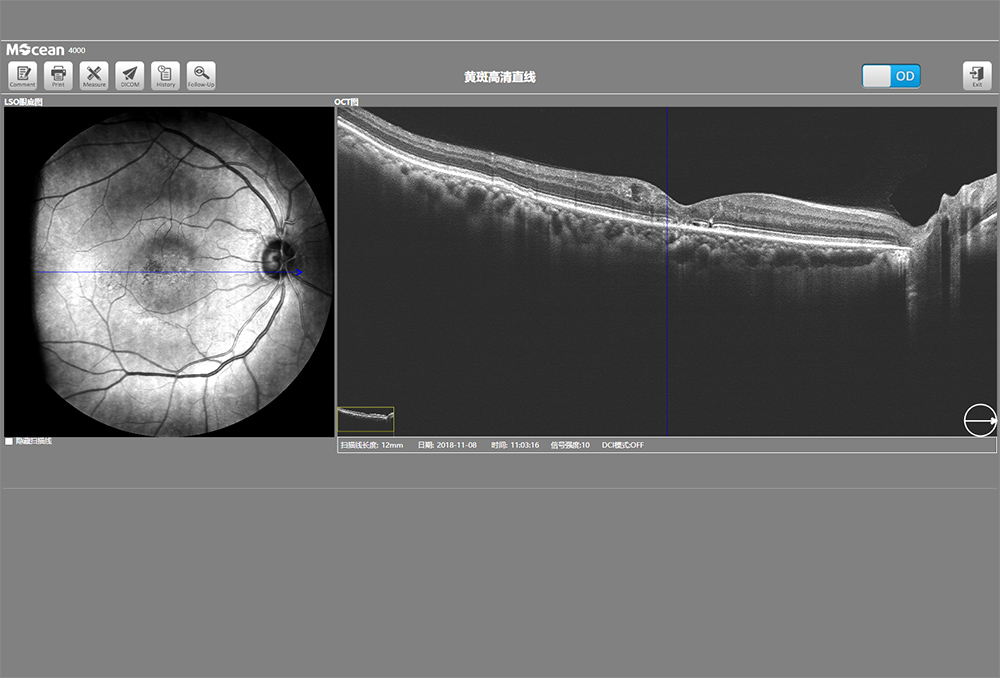

Mocean 4000, configured with the high-end SLO-OCT combined imaging systems and SLO-based eye tracker, is a powerful platform for advanced application such as OCT Angiography.
Overview
- High scanning speed at 80,000 A-scans/s
- Up to 100 images averaging enhances the quality of OCT imaging
- 3mm scan depth shows better details of the vitreous, retina and choroid

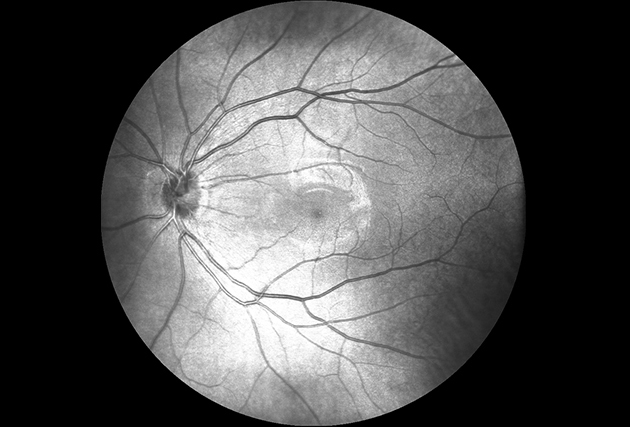

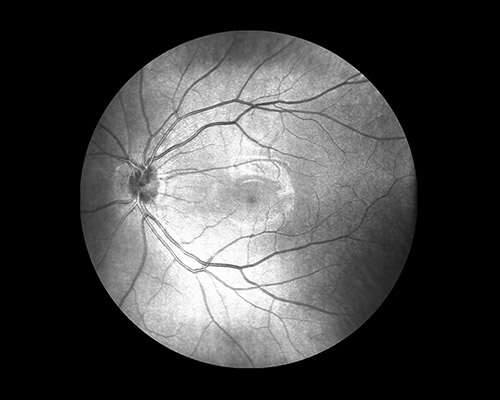

- Real-time 45° SLO retinal imaging
- SLO-based retinal tracking
- 16mm angle-to-angle scan
Specifications
| OCT IMAGING | |
|---|---|
| Methodology | Spectral domain OCT |
| Optical source | Super luminescent diode (SLD), 840 nm |
| Scan speed | 80,000 A-scans/s |
| Axial resolution (optical) | 5 microns (optical), 2.7 microns (digital) |
| Transverse resolution | 15 microns (optical), 3 microns (digital) |
| A-scan depth | 3 mm |
| Diopter range | - 20 to + 20 diopters |

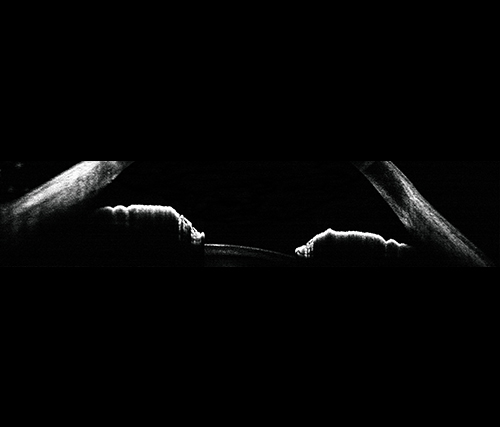

| Scan patterns | Macular: HD line scan (6 / 12 mm), 3D scan (6 mm x 6 mm), 6-line radial scan, Multi (X-Y: 5 x 5) Disc: 3D scan (6 mm x 6 mm) Anterior: HD line scan (6 / 16mm), 6-line radial scan |
| FUNDUS IMAGING | |
|---|---|
| Methodology | Line scanning laser ophthalmoscopy (LSLO) |
| Minimum pupil diameter | 3.0 mm |
| Field of view | 45 degrees |
| VASCAN™ OCTA MODULE (Essential / Advance optional) | |
|---|---|
| Scanning volume/area | 3mm x 3mm 256 x 256 A-scans 6mm x 6mm 360 x 360 A-scans 8mm x 8mm 360 x 360 A-scans 12mm x 8 mm 540 x 360 A-scans |
| Algorithm | C-OMAG |
| Segmentation options | Encoded, Vitreousretina Intrerface(VRI), Superfcial retina, Deepfcial retinal, Avascular, Choriocapillaris, Choriod, Custom |
| Quantitative analysis | Yes |
| ELECTRICAL AND PHYSICAL | |
|---|---|
| Weight | 30.5 kg |
| Dimension | 532 mm (L) x 360 mm (W) x 540 mm (H) |
| Source voltage | AC 100 - 240 V |
| Frequency | 50 Hz - 60 Hz |
| Power input | 90 VA |

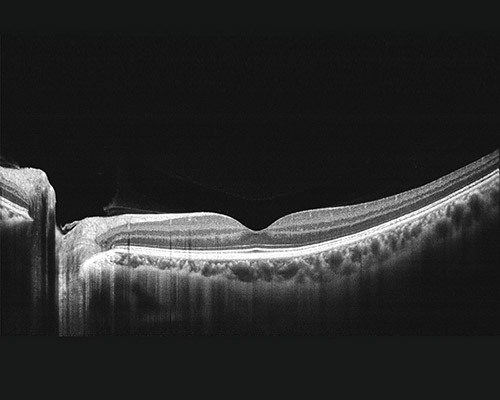

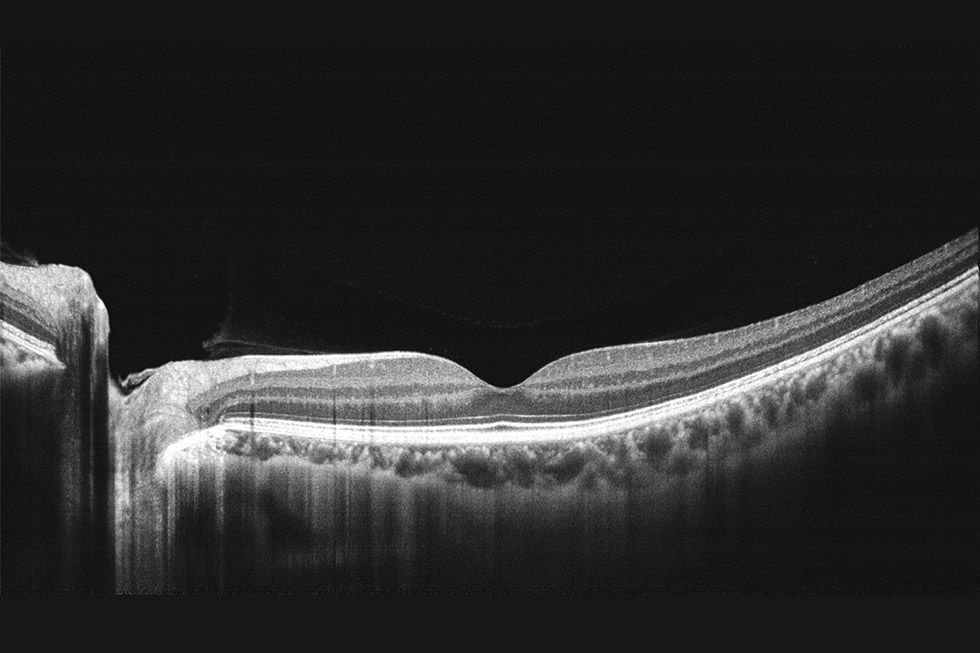

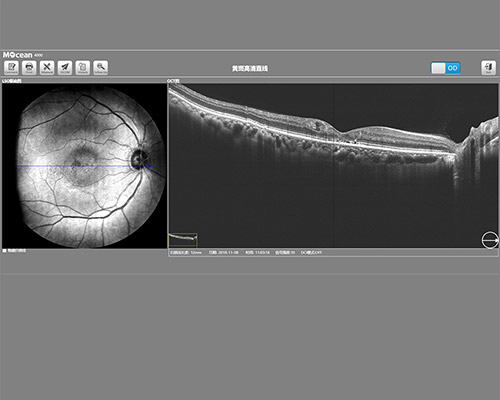

Gallery
