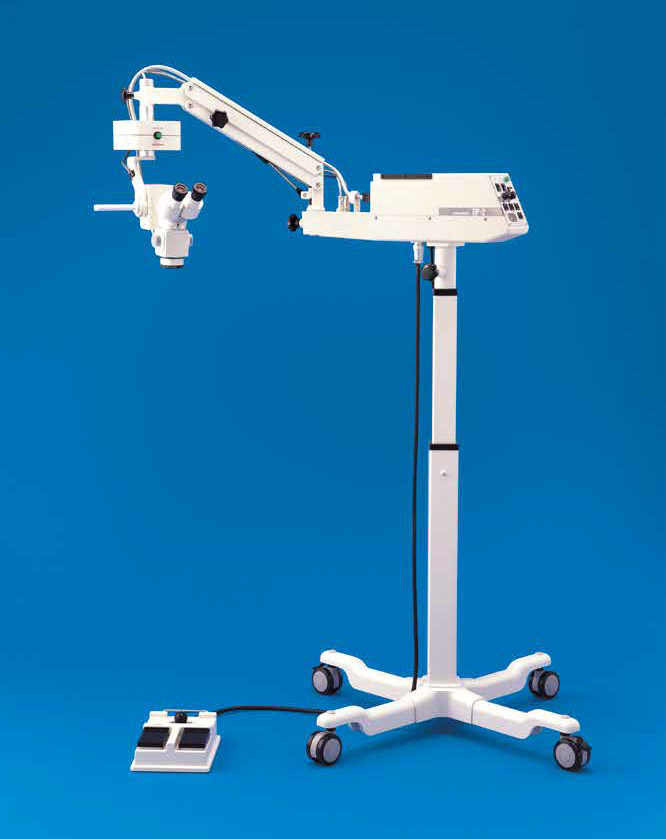

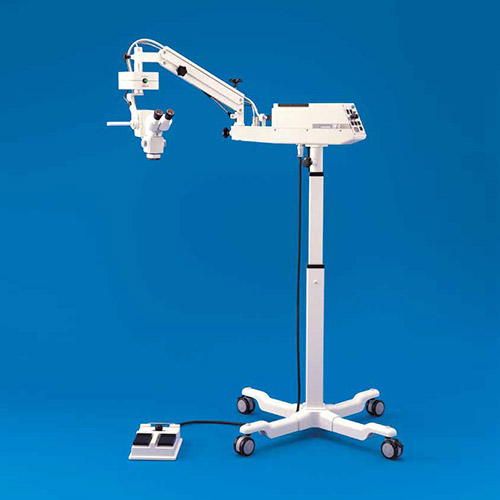

Operating Microscope OP-2
It is designed for easy microsurgey. Especially for the eye.
The adjustment of the height is made by counter-balance and the fine adjustment of the microscope is motorized by a footswitch operation without using hands.
Easy sterilization protectors are attached on the magnification changer knobs and the microscope positioning handle.
The five-steps magnification changer is incorporated in the OP-2; 0.4X, 0.6X, 1.0X, 1.6X and 2.5X, which permits a variety of the total magnifications of 2.6X, 4.1X, 6.4X, 10.0X and 15.8X.
Control knobs are located on both sides of the microscope head to permit the surgeon to conveniently select the desired magnification.
X-Y unit (option)
Beam splitter (option)
CCD camera and C-mount adapter (option)
Easy Lamp Exchange
Just pull up the lamp housing and
twist it to exchange the lamp
Specifications
| Microscope | |
|---|---|
| Binocular tube | Inclined and straight |
| Type | Manual 5 steps (drum type) (0.4X, 0.6X, 1.0X, 1.6X, 2.5X) |
| Objective Lens | f=175mm |
| Eyepiece | 10X |
| Total magnifications | 2.6X, 4.1X, 6.4X, 10.0X, 15.8X |
| Effective visual field | φ69, φ44, φ28, φ18, φ11.4 |
| Vertical movement (fine adjustment) |
36mm by motor |
| Illumination | |
|---|---|
| Illumination method | Coaxial illumination by light guide system using halogen lamp of 15V 150W (Philips Type 6423) |
| Illumination field diameter | 49mmφ |
| Arm | |
|---|---|
| Type | Gas counterbalanced arm |
| Length | 1,000mm |
| Vertical movement | 400mm by manual operation |
| Optional | |
|---|---|
| Beam splitter, C-mount adapter, CCD color camera, Digital SLR Camera attachment, objective lens f=200mm, 250mm, 375mm, X-Y Unit (with Foot Switch) | |
