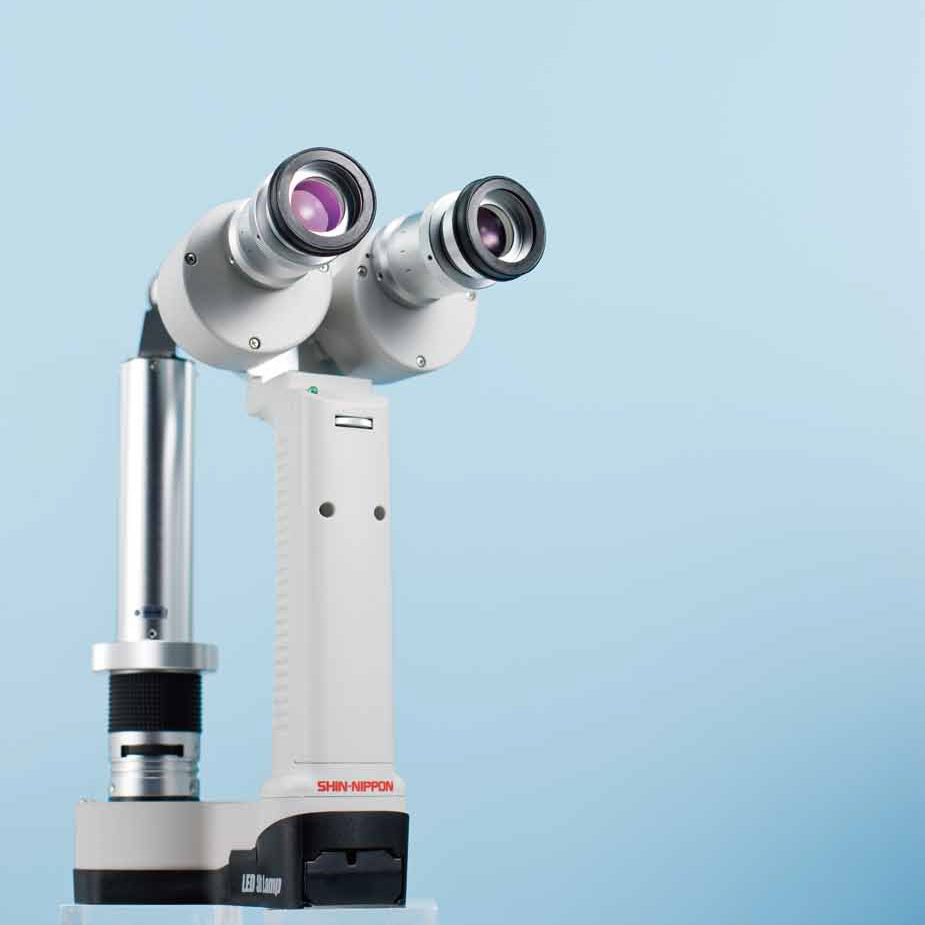

Handy slit lamp XL-1
XL-1 is LED Slit Lamp of the handheld type that adopts high luminance white LED for the first source of light in the world. It is unnecessary of the troublesome lamp exchange and the life of the light became long.
Overview
(standard accessory)
High-Intensity Day Light Color LED Sharp slit light
Adopting the day light color LED to have the light sharp as the previous type and adjust the lighting and alit width freely maintaining the light intensity.
Built-In PD (Pupil Distance) Adjustment Gear
PD interlock adjusting gear newly installed for easier image focus.
Light Weight / Compact Size Filter Functions (Illumination System)
Various filters to select from to efficiently operate. (Cobalt Blue, Green and Conversion filter for the color temperature)
Battery Power
Operative for 2 hours with maximum luminance. (Battery: Full change)
Specifications
| Microscope | Eyepiece | X10、X16 (Option) |
|---|---|---|
| Total magnifications | X10、X16 (Option) | |
| Diopter adjustment | ±7D | |
| Visual field | ø10mm | |
| PD adjustment range | 50-70mm (at eyepiece 10X) 55-70mm (at eyepiece 16X) | |
| Working distance | 80mm | |
| Illumination | Slit width | 0-11mm (Stepless adjustmnet is possible.) |
| Slit length | 11mm | |
| Filters | Cobalt blue, Green, Color temperature conversion filter | |
| Illmination angle | On the level circumference±30degrees | |
| Light source | Light source | Day Light Color LED |
| Battery | Voltage | Li-ion battery 7.4V 680mAh |
| Operation time | Apporox. 2 hours (in full charged state with maximum illumination) | |
| Charger | Imput voltage | AC 100-240V 60-50Hz |
| Output voltage | DC 12V 500mAh | |
| Standard accessories | Carrying case 1pc, Battery 1pc, Battery Charger 1pc, Forehead support 1pc, Diopter adjustment bar 1pc, Instruction manual 1pc | |
| Optional Accessories | 16x Eyepiece (1set), Spare battery 7.4V 680mAh (1pc) | |
| Dimension and weight | Dimension | 195mm(W)x105mm(D)x230mm(H) |
| Weight | about 700g (including a battery) | |
