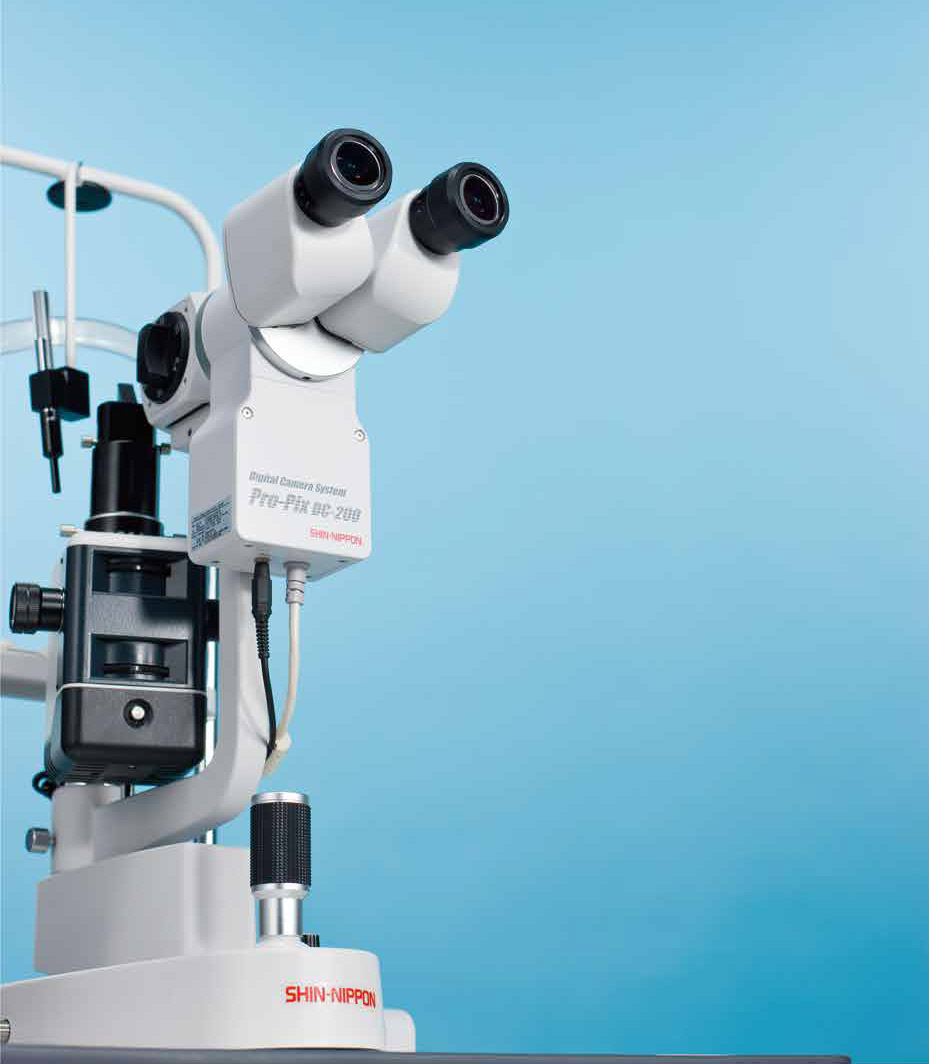

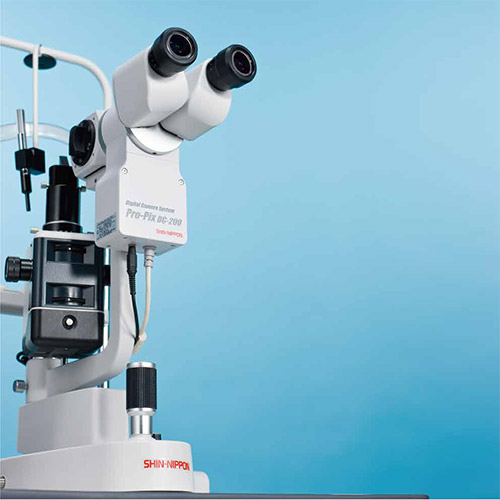

SL-40 / 45 / 55 / 95
Complete Slit Lamp line-ups to meet various needs and requirements.
Convergence Optics
12 degree convergence optics for easy image fusion. Newly designed optical alignment affording wider visibility in the eyepiece.

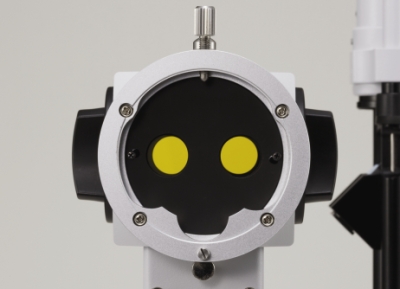

Built-In Yellow Filter
Internal yellow filter may be conveniently switched in/out quickly for fluorescein techniques

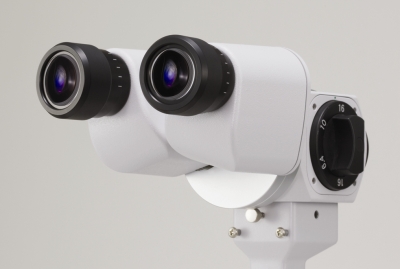

Wide Field & High Eye point Eyepiece Design
With our newly created wide field optics, we have successfully increased the actual field of view. Wider fields of view as 37,23, 14.6, 9.5 & 5.9mm are achieved. With the new high-point eyepiece feature, eye exams are performed in a more natural, comfortable manner.
Illumination Improvement (Brightness Increase ×1.8)
Reviewed and redesigned the illumination pathway and increased the illumination using the same light bulb. (20W)
* Brightness comparison against our existing 20W model.
Expanded Slit Width & Height
A wider slit width & longer slit height capability are attractive features when combined with our new wide field optics.
Slit width: 0-15mm
Slit height: 0.2, 1, 3, 5, 8, 15mm/0.5-15mm
Diffuser
Standard adjustable diffuser for clear image capturing
Foot Switch
Upon using the digital camera system, the foot switch will let you easily and quickly take pictures of the patient's eye during examination.
SL-40/45/45DX Specifications
| SL-40 | SL-45DX/45 | ||
|---|---|---|---|
| Microscope | Type | Binocular, Greenough-Type | Binoculer, Galilean-type |
| Magnification Changing Method | Drum Rotation 2 Step | Drum Rotation 3 Step | |
| Eyepieces | ×10 High-Eyepoint （×18 available as an option） |
×13.5 High-Eyepoint （×18 available as an option） |
|
| Total Magnification | ×10, ×16 | ×10, ×16, ×25 | |
| Field of View | φ17, φ10.5, φ6.5mm | φ20, φ13, φ8mm | |
| Pupillary Distance | 52mm to 81mm、 48mm to 77mm |
43mm to 80mm | |
| Diopter Adjustment Range | -5D to +5D | ||
| Base | Working Distance （Back & Forth） | 100mm | |
| Working Distance （Left & Right） | 100mm | ||
| Working Distance （Up & Down） | 30mm | ||
| Chin-rest | Vertial Working Distance | 70mm | |
| Fixation Target | Tungsten | ||
| Illumination system | Slit Width | 0 to 15mm, continuous | |
| Slit Length | 0.2,1,3,5,8,15mm | ||
| Light Source (Bulb) | 6V 20W (Halogen) | ||
| Filter | Cobalt, Heat Absorption, Green | ||
| Power | Voltage | AC 100-120V, 220V, 240V | |
| Power Input | 50VA | ||
| Size | Weight | 20〜22kg | |
| Size | 480mm（W）× 410mm（D）× 670mm（H） | ||
| Optional Accessories | Pro-Pix(Foot Switch Included), |
||
SL-95 Specifications
| Microscope | Type | Binoculer, Galilean-type |
|---|---|---|
| Magnification Changing Method | 5 Step Drums Rotation | |
| Eyepieces | 12.5x High-Eyepoint | |
| Filter for Eyepieces | Yellow filter | |
| Total Magnification | 6.5x, 10x, 16x, 25x, 40x | |
| Field of View | φ37, φ23, φ14, φ9, φ5.9mm | |
| Pupillary Distance | 52mm to 80mm | |
| Diopter Adjustment Range | -7D to +7D | |
| Base | Working Distance （Back & Forth） |
100mm |
| Working Distance （Left & Right） | 100mm | |
| Working Distance （Up & Down） | 30mm | |
| Chin-rest | Vertial Working Distance | 70mm |
| Fixation Target | Tungsten | |
| Illumination system | Slit Width | 0 to 15mm, continuous |
| Slit Length | 0.2,1,3,5,8,15mm | |
| Light Source (Bulb) | 6V 20W (Halogen) | |
| Filter | Cobalt, Heat Absorption, Green | |
| Power | Voltage | AC 100-120V, 220V, 240V |
| Power Input | 50VA | |
| Size | Weight | 20 to 22kg |
| Size | 480mm（W）× 410mm（D）× 670mm（H） | |
| Standard Accessories | Operation Manual,Power Cable,Dust Cover,Chin-rest Paper,Replacement Halogen Lamp,Test Bar,Breath Shield,Spare Fuse,Replacement Fixation Light Bulb,Allen Key |
